Release Note

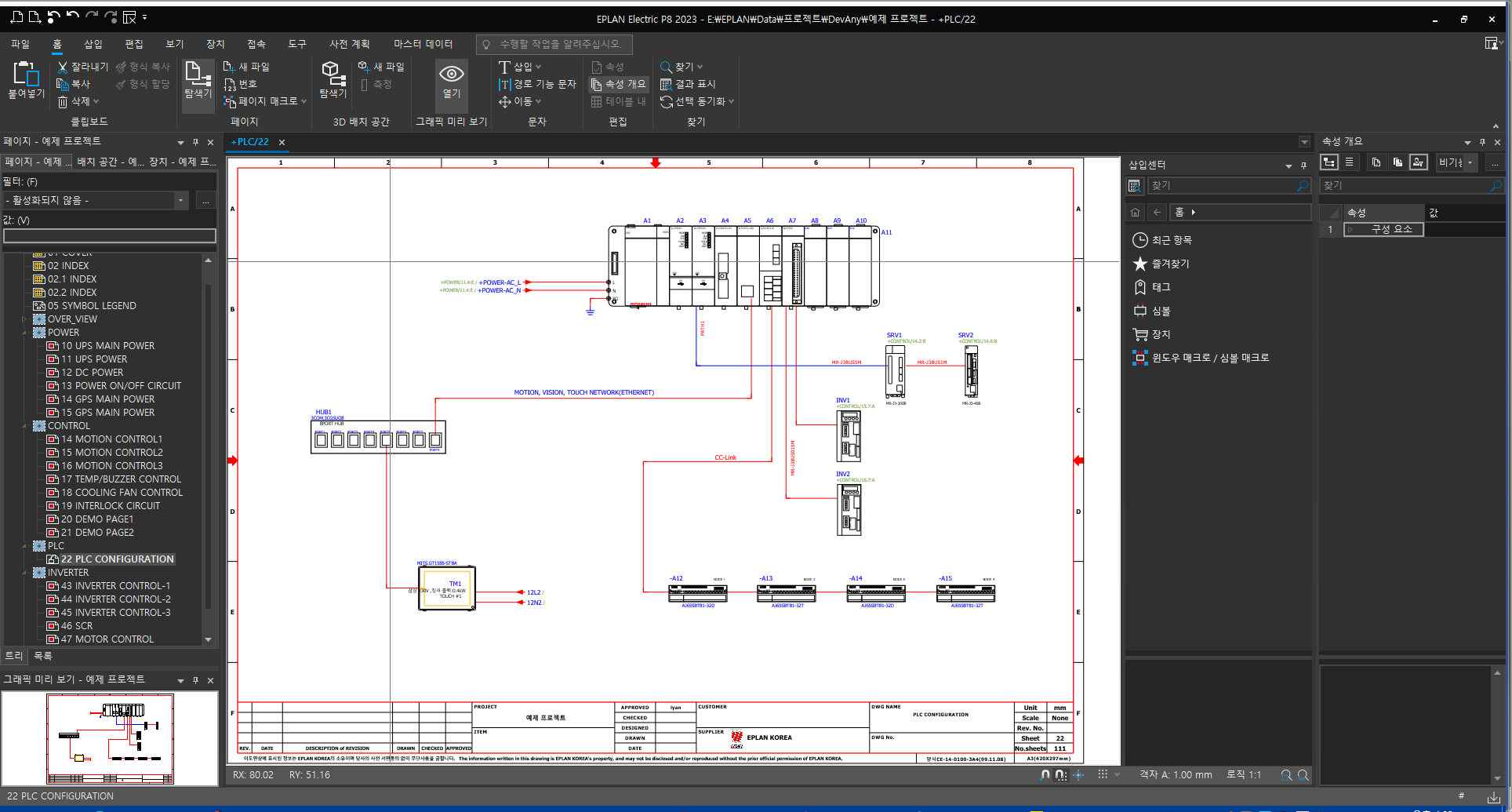

| Area | Functionality | Version |
| PLC | During the addressing of PLC connection points an unexpected error occurred under specific conditions. This has been corrected. | 2023 Update2 |
| Connections | As of Version 2023 you can specify in the project settings for connections that PE terminals with rail contact are connected automatically. If the Automatically connect PE terminals with rail contact check box was activated and PE function templates, that were not overlapped by any function, existed in the project, problems occurred during the update of the connections. This has been corrected. | 2023 Update2 |
| PLC | If you edit the properties of several PLC connection points at the same time, it is now possible to change the entries in the fields Address and Symbolic address again in the PLC connection point tab of the property dialog. | 2023 Update2 |
| PLC | The performance when translating and deleting translation texts has been improved in the dialog Assignment list. | 2023 Update1 |
| Cables | Improved behavior of shields Different improvements have been made for working with shields. Shields can now be placed with drag & drop from the navigator dialogs. During subsequent drawing of a shield it now automatically assumes the DT of the associated cable. Read more... |
2023 |
| Cables | Improved Dialog "Edit cable" With this version the dialog Edit cable has been revised and improved. In the new dialog Edit cable you can now – in addition to assigning the cable connections to the function templates of the cable part – also view and edit the device-specific properties of a cable. To this purpose the information on the cable and cable connections are clearly displayed in two tables arranged on top of each other. Similar to the dialog Edit terminal strip specific information is now graphically visualized in separate columns, for example connection color, shields or pair index. Read more... |
2023 |
| PLC | Moving PLC Inputs and Outputs In the past, if you wanted to assign several configured PLC connection points to other physical PLC connection points of the PLC device, meaning that you wanted to "move" the PLC connection points, you had to call up the property dialog for each individual PLC connection point and change the respective properties (such as Plug designation, Connection point designation, PLC address). As of this version the new dialog Move PLC inputs and outputs in which you can perform such moving actions from a central point is now available in the ribbon. Read more... |
2023 |
| PLC | Extensions for the PLC Data Exchange in the AutomationML AR APC Format Version 1.3.0 PLC data exchange is possible for different PLC manufacturers in AutomationML format. Different variants exist in the AutomationML format depending on the respective usage. The "Application Recommendation Automation Project Configuration" (short: "AR APC") variant is used for the PLC data exchange. The following extensions for the PLC data exchange in the AutomationML AR APC format have been realized for this version: - Support of the current AutomationML AR APC Version 1.3.0 - Exchange of symbolic addresses within user-defined data types (UDT) Read more... |
2023 |
| PLC | Network properties are only still visible at bus ports Since Version 2022 the following network properties can only be edited at bus ports: Physical network: Bus ID / item number (ID 20311), Physical network: Bus ID / item number 2 (ID 20386), Physical network: Name (ID 20413), Subnet mask (ID 20446), Bus system (ID 20308). These properties were initially still available at PLC boxes and were there displayed grayed out. As of this version the network properties at the PLC boxes are not displayed anymore. |
2023 |
| PLC | The input of the configuration project at bus ports has been moved to property table At bus ports the input of a configuration project is usually not required since this is automatically determined by the associated PLC box. For this reason the Configuration project field in the Bus data tab of the property dialog has been removed. To enter a configuration project deviating from the PLC box, the Configuration project (at PLC boxes and bus ports) property is instead available in the group box Properties of the network interface. |
2023 |
| PLC | Renamed property "TemplateIdentifier" To prevent confusion with the property PLC station: TemplateIdentifier, the TemplateIdentifier property has been renamed to PLC device: TemplateIdentifier. These properties can be used for the exchange of device-specific configuration values during the PLC data exchange in AutomationML AR APC format. |
2023 |
| PLC | Displaying the representation type in the dialog "Use existing PLC connection points blockwise" In the dialog Use existing PLC connection points blockwise, the representation type could previously only be displayed in the To table in the left area of the dialog. This table displays the selected, placed PLC boxes and connection points. Now the representation type can also be shown in the From table in the right area of the dialog as an additional column. This table shows the PLC boxes and connection points that you selected for re-use. |
2023 |
| PLC | Properties no longer required for rack The following properties were only required for the PLC data exchange via the outdated "Rockwell Studio 5000 Architect 20/21" interface: Sort code (for position in rack) (ID 20258), Number of positions in the rack (ID 20259), Number of positions in the rack (to the left) (ID 20260). Since this interface is not supported anymore and the PLC data exchange has been changed to the new AutomationML standard, these properties are not required anymore and should not be used anymore. For this reason the properties are now identified with the supplement "(not available anymore)". At PLC boxes these properties are only available in the PLC structure data tab for reasons of compatibility to previous EPLAN versions and are displayed grayed-out there. |
2023 |
| Connection Numbering | Extended Settings for the Connection Numbering The Settings: Connection numbering dialog has been extended with a filter for the potential type for this version. In addition, you now have the possibility to format the automatically placed connection definition points in accordance with the default property arrangement for manually inserted connection definition points. (A possible command path to this dialog is: File > Settings > Projects > "Project name" > Connections > Connection numbering.) Read more... |
2023 |
| Connections | New setting for the potential extension between PE terminals with rail contact In the project settings the dialog Settings: General (for connections) has been extended with the setting Automatically connect PE terminals with rail contact (Command path: File > Settings > Projects > "Project name" > Connections > General). If this check box is activated, the potential between terminals with the function definitions "PE terminal with rail contact, x connection points" (whereby x = 1 ... 9) is automatically extended within a terminal strip. To this purpose the terminals are connected automatically with internal jumpers on the terminal strip according to their sequence. |
2023 |
| Connections | Using the user-defined property arrangement as the default for cable connections When saving a user-defined property arrangement for connection definition points you can specify that this is to be used as the default for cable connections. During the generation and placement of the connection definition points for cable connections, the property arrangement specified in this manner was, however, not used. Instead, the property arrangement was used that was specified as the default for "normal" connections. This has been corrected. In the course of this correction the check box Default for cable connections has been added to the dialog Configure property arrangements - <Project name>. This check box is only available for connection definition points. Through this extension you can now also specify a property arrangement as the default for cable connections at a central point. |
2023 |
| Terminals | Renamed popup menu item in the dialog "Edit terminal strip" The popup menu item Alignable accessories following in the dialog Edit terminal strip was misleading and has therefore been renamed to Enter alignable accessories at upper main terminal. With this popup menu item you specify at which main terminal the part of the alignable accessories is entered. |
2023 |
| PLC | The property Deactivated I/O connection point (ID 20438) is now available both in the filter of the PLC navigator as a filter criterion and in the report and labeling filters for the report type "PLC diagram". | 2023 |
| PLC | When synchronizing functions (Tab Tools > Command group Synchronization > Drop-down button Functions > Multi-line --> all representation types) the property Symbolic address: Group (ID 20610) was not considered. This now works. | 2023 |
| PLC | If a counter with hexadecimal number system was used in the PLC address format, it was possible that the connection points were not numbered correctly while duplicating PLC connection points. This has been corrected. | 2023 |
| PLC | If the PLC cards with empty configuration projects were connected within a network, the export generated faulty links. This does not happen anymore now. No links are output anymore in the AML file for such PLC cards that were not exported. | 2023 |
| PLC | In channels with several I/O connection points only one may be active at any given time. The further I/O connection points can be identified as deactivated by means of the Deactivated I/O connection point property. Deactivated PLC connection points are treated like power supplies and not considered by check run 004020 and during the export of PLC configuration files. If PLC connection points with the function definition "PLC connection point, variable" were identified as deactivated, they were in the past still considered for these actions. This has been corrected. | 2023 |
| PLC | While addressing multiple PLC cards for which no start value was entered in the Start address of PLC card property, it was possible that the carry over for the first counter was calculated incorrectly. This has been corrected. | 2023 |
| PLC | In the dialogs Use existing PLC connection points blockwise, Use existing PLC addresses blockwise and Move PLC inputs and outputs the performance when moving table cells has been improved. | 2023 |
| Terminals / plugs | In the dialogs Edit terminal strip and Edit plug the marker of the currently selected table cells was lost during specific actions (part selection or selection of a level). This has been corrected. | 2023 |
| Edit in table | The properties CPU: Name [2] to CPU: Name [128] could be edited in tabular editing even if the respective PLC box was marked as a CPU. This has been corrected. Furthermore the property CPU: Name [1] is now always write-protected in tabular editing and can only be edited in the property dialog of the respective PLC box. | 2023 |
